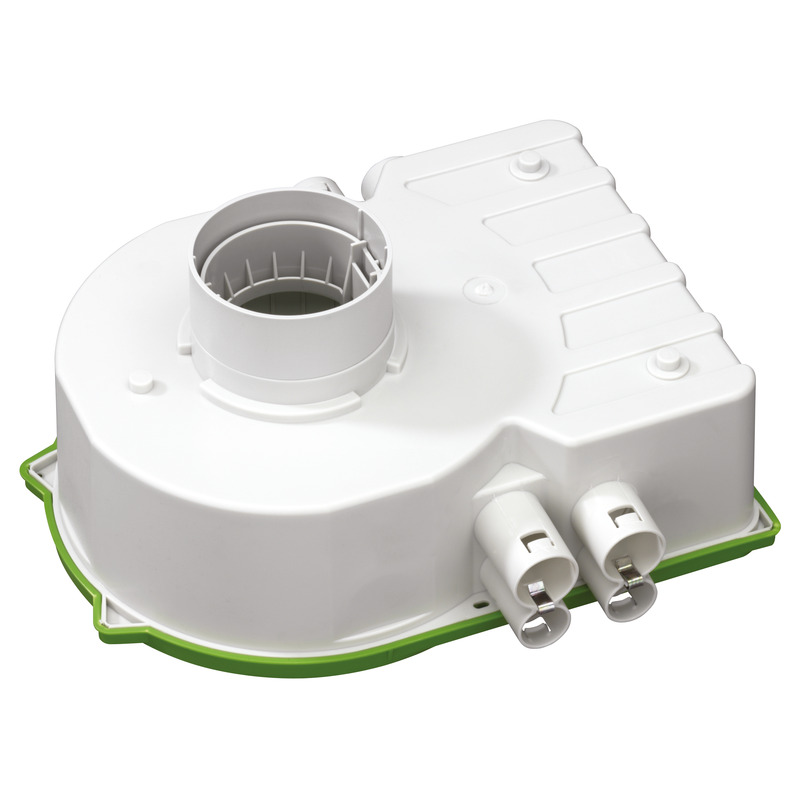

Hus, for prefabricated construction, for installing LV/HV/LED luminaires, suitable for subsequent installation in prefabricated ceilings 45-70 mm with Ø 82 mm core drilling, for the installation of VDE-approved lights per DIN EN 60598 (VDE 0711), as well as with F identification or MM identification, max. installation height LV lights: 105 mm, HV lights: 110 mm, lamp output max. 50W Alu, with additional connection space, (e.g. for installing an electronic safety transformer up to max. 150 VA), Isolationsspänning: 400V AC, halogenfri
Outlet aperture: Ø 76 mm, ORD (Outer Ring Diameter of lights), min. Ø 85 mm, 8 combi-conduit entry points 4 x 16 mm, 4 x 19 mm integrated conduit stopper and strain relief for conduits 16 mm, 19 mm, Plugginsfästning, Integrerade rörstudsar, Tätningsdiameter M16 - M19
